Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Maximum well diameter:3".
Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

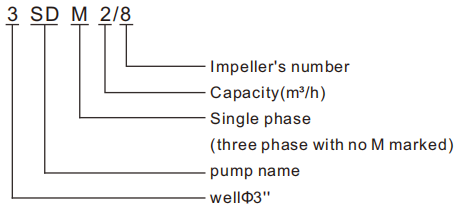

Model Description

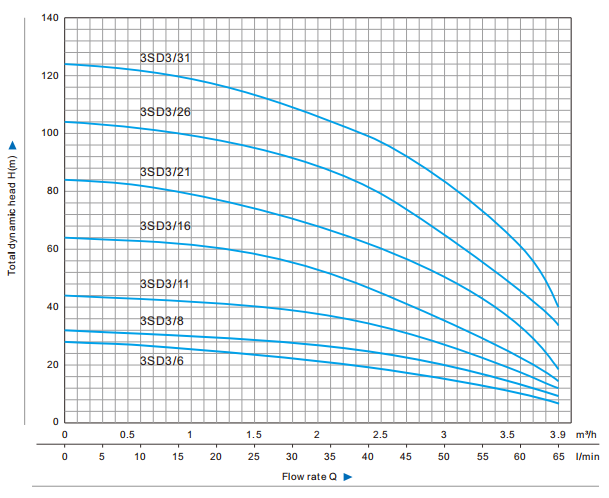

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 3.9 | |
| l/ min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 65 | ||||||
| 3SDM3/6 | 3SD3/6 | 0.18 | 0.25 | 1"1¼" | H(m) | 24 | 23 | 22 | 21 | 19 | 15 | 10 | 7 | |
| 3SDM3/8 | 3SD3/8 | 0.25 | 0.33 | 1"1¼" | 32 | 31 | 30 | 28 | 25 | 20 | 13 | 9 | ||
| 3SDM3/11 | 3SD3/11 | 0.37 | 0.5 | 1"1¼" | 44 | 43 | 41 | 39 | 35 | 28 | 18 | 12 | ||
| 3SDM3/16 | 3SD3/16 | 0.55 | 0.75 | 1"1¼" | 64 | 63 | 60 | 57 | 51 | 41 | 26 | 17 | ||
| 3SDM3/21 | 3SD3/21 | 0.75 | 1 | 1"1¼" | 84 | 82 | 78 | 74 | 67 | 53 | 34 | 23 | ||
| 3SDM3/26 | 3SD3/26 | 0.92 | 1.25 | 1"1¼" | 104 | 102 | 97 | 92 | 83 | 66 | 43 | 28 | ||
| 3SDM3/31 | 3SD3/31 | 1.1 | 1.5 | 1"1¼" | 124 | 121 | 116 | 110 | 99 | 79 | 51 | 34 | ||
| 3SDM3/37 | 3SD3/37 | 1.5 | 2 | 1"1¼" | 148 | 145 | 138 | 131 | 118 | 94 | 61 | 40 | ||
