Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Maximum well diameter:2.5".
Motor and Pump
Rewindable motor or Full obturated screen motor
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to iSO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

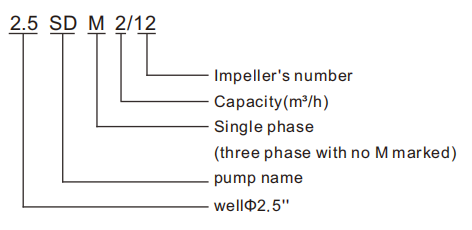

Model Description

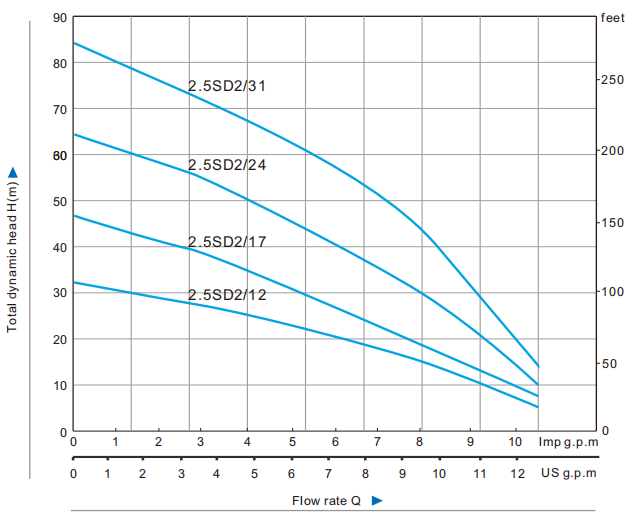

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||
| 220-240V | KW | HP | Q | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | |
| l/ min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | |||||
| 2.5SDM2/12 | 0.18 | 0.25 | 1" | H(m) | 33 | 30 | 28 | 26 | 23 | 20 | 17 | 11 | 5 | |
| 2.5SDM2/17 | 0.25 | 0.33 | 1" | 46 | 42 | 39 | 37 | 33 | 29 | 24 | 16 | 7 | ||
| 2.5SDM2/24 | 0.37 | 0.5 | 1" | 65 | 60 | 56 | 52 | 46 | 40 | 33 | 22 | 10 | ||
| 2.5SDM2/31 | 0.55 | 0.75 | 1" | 84 | 77 | 72 | 67 | 60 | 52 | 43 | 29 | 13 | ||
