Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Maximum well diameter:3".
Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

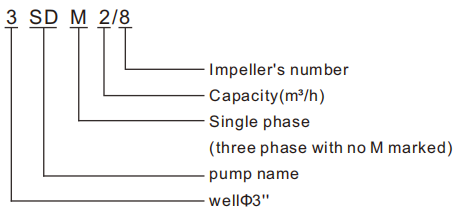

Model Description

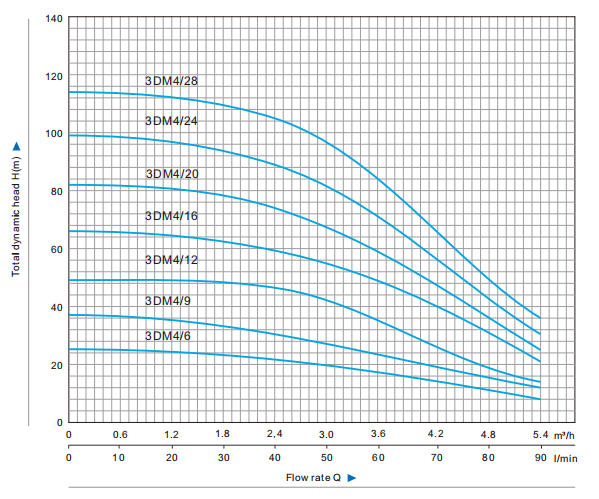

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||||
| 220240V | 3803415V | KW | HP | Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | |
| l/ min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | ||||||
| 3SDM4/6 | 3SD4/6 | 0.18 | 0.25 | 1"1¼" | H(m) | 25 | 25 | 24 | 23 | 22 | 19 | 19 | 16 | 13 | 8 | |
| 3SDM4/9 | 3SD4/8 | 0.25 | 0.33 | 1"1¼" | 37 | 37 | 36 | 35 | 33 | 28 | 28 | 24 | 19 | 12 | ||
| 3SDM4/12 | 3SD4/11 | 0.37 | 0.5 | 1"1¼" | 49 | 48 | 48 | 47 | 45 | 37 | 37 | 32 | 25 | 15 | ||
| 3SDM4/16 | 3SD4/16 | 0.55 | 0.75 | 1"1¼" | 66 | 65 | 65 | 62 | 59 | 50 | 50 | 42 | 34 | 21 | ||
| 3SDM4/20 | 3SD4/21 | 0.75 | 1 | 1"1¼" | 82 | 81 | 81 | 78 | 74 | 62 | 62 | 53 | 42 | 25 | ||
| 3SDM4/24 | 3SD4/26 | 0.92 | 1.25 | 1"1¼" | 99 | 99 | 97 | 93 | 89 | 75 | 75 | 63 | 51 | 31 | ||
| 3SDM4/28 | 3SD4/31 | 1.1 | 1.5 | 1"1¼" | 115 | 115 | 113 | 103 | 109 | 87 | 74 | 74 | 59 | 36 | ||
