Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:90m.
Maximum well diameter:4".
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

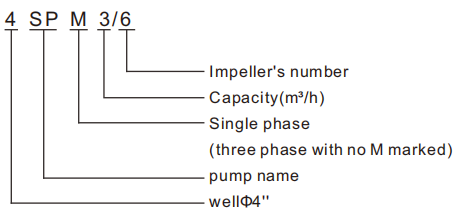

Model Description

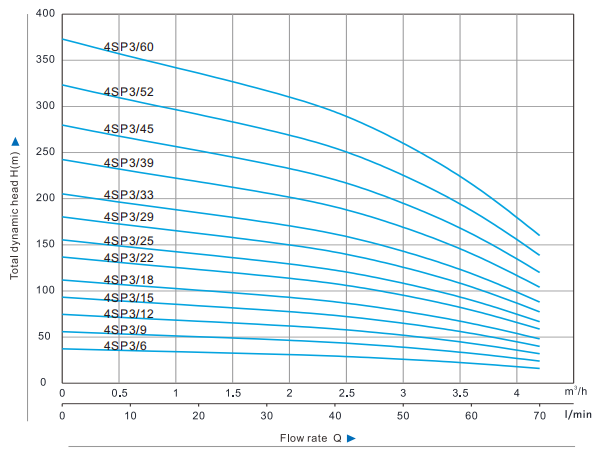

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | |
| l/ min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | ||||||
| 4SPM3/6 | 4SP3/6 | 0.37 | 0.5 | 1%"1½" | H(m) | 37 | 35 | 34 | 32 | 29 | 26 | 22 | 16 | |
| 4SPM3/9 | 4SP3/9 | 0.55 | 0.75 | 1%"1%" | 56 | 53 | 50 | 48 | 44 | 39 | 32 | 24 | ||
| 4SPM3/12 | 4SP3/12 | 0.75 | 1 | 1%"1½" | 75 | 71 | 67 | 63 | 59 | 52 | 43 | 32 | ||
| 4SPM3/15 | 4SP3/15 | 1.1 | 1.5 | 1%"1½" | 93 | 89 | 84 | 79 | 74 | 65 | 54 | 40 | ||
| 4SPM3/18 | 4SP3/18 | 1.1 | 1.5 | 1%"1½" | 112 | 106 | 101 | 95 | 88 | 78 | 65 | 48 | ||
| 4SPM3/22 | 4SP3/22 | 1.5 | 2 | 1%"1½" | 137 | 130 | 123 | 116 | 108 | 95 | 79 | 59 | ||
| 4SPM3/25 | 4SP3/25 | 1.5 | 2 | 1%"1½" | 155 | 148 | 140 | 132 | 123 | 108 | 90 | 67 | ||
| 4SPM3/29 | 4SP3/29 | 2.2 | 3 | 1%"1½" | 180 | 171 | 162 | 153 | 142 | 126 | 104 | 77 | ||
| 4SPM3/33 | 4SP3/33 | 2.2 | 3 | 1%"1½" | 205 | 195 | 185 | 174 | 162 | 143 | 119 | 88 | ||
| — | 4SP3/39 | 3 | 4 | 1%"1½" | 242 | 230 | 218 | 206 | 191 | 169 | 140 | 104 | ||
| — | 4SP3/45 | 3 | 4 | 1%"1½" | 280 | 266 | 252 | 238 | 221 | 195 | 162 | 120 | ||
| — | 4SP3/52 | 4 | 5.5 | 1%"1½" | 323 | 307 | 291 | 275 | 255 | 225 | 187 | 139 | ||
| — | 4SP3/60 | 4 | 5.5 | 1%"1½" | 373 | 354 | 336 | 317 | 294 | 260 | 216 | 160 | ||
