Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:90m.
Maximum well diameter:4".
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.
Model Description

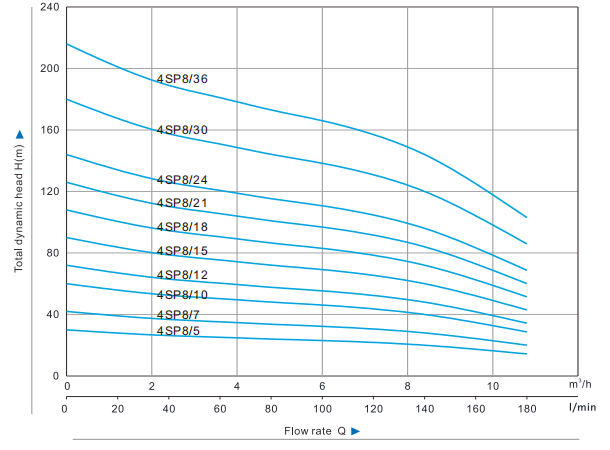

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q | m³/h | 0 | 1.2 | 2.4 | 3.6 | 4.8 | 6.0 | 7.2 | 8.4 | 9.6 | 10.8 | |
| l/ min | 0 | 20 | 40 | 60 | 80 | 100 | 120 | 140 | 160 | 180 | ||||||
| 4SPM8/5 | 4SP8/5 | 0.75 | 1 | 1½"/2" | H(m) | 30 | 28 | 26 | 25 | 24 | 23 | 22 | 20 | 17 | 14 | |
| 4SPM8/7 | 4SP8/7 | 1.1 | 1.5 | 1½"/2" | 42 | 39 | 37 | 35 | 34 | 32 | 31 | 28 | 24 | 20 | ||
| 4SPM8/10 | 4SP8/10 | 1.5 | 2 | 1½"/2" | 60 | 56 | 53 | 50 | 48 | 46 | 44 | 40 | 35 | 29 | ||
| 4SPM8/12 | 4SP8/12 | 2.2 | 3 | 1½"/2" | 72 | 67 | 63 | 60 | 58 | 55 | 52 | 48 | 42 | 34 | ||
| 4SPM8/5 | 4SP8/15 | 2.2 | 3 | 1½"/2" | 90 | 84 | 79 | 75 | 72 | 69 | 66 | 60 | 52 | 43 | ||
| — | 4SP8/18 | 3 | 4 | 1½"/2" | 108 | 100 | 95 | 91 | 86 | 83 | 79 | 72 | 63 | 51 | ||
| — | 4SP8/21 | 4 | 5.5 | 1½"/2" | 126 | 117 | 110 | 106 | 101 | 97 | 92 | 84 | 73 | 60 | ||
| — | 4SP8/24 | 4 | 5.5 | 1½"/2" | 144 | 134 | 126 | 121 | 115 | 110 | 105 | 96 | 84 | 69 | ||
| — | 4SP8/30 | 5.5 | 7.5 | 1½"/2" | 180 | 167 | 158 | 151 | 144 | 138 | 131 | 120 | 105 | 86 | ||
| — | 4SP8/36 | 5.5 | 7.5 | 1½"/2" | 216 | 201 | 189 | 181 | 173 | 166 | 157 | 144 | 125 | 103 | ||
