Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:90m.
Maximum well diameter:4".
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

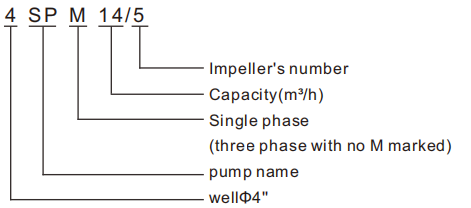

Model Description

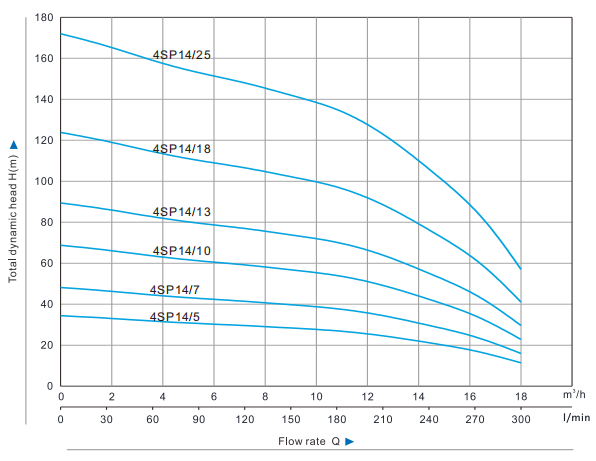

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | ||||||||||||||
|
1~ 220-240V |
3~ 380-415V |
KW | HP | Q | m³/h | 0 | 1.8 | 3.6 | 5.4 | 7.2 | 9.0 | 10.8 | 12.6 | 14.4 | 16.2 | 18 | |
| l/ min | 0 | 30 | 60 | 90 | 120 | 150 | 180 | 210 | 240 | 270 | 300 | ||||||
| 4SPM14/5 | 4SP14/5 | 1.5 | 2 | 1½"/2" | H(m) | 34 | 34 | 32 | 31 | 30 | 28 | 27 | 25 | 21 | 17 | 11 | |
| 4SPM14/7 | 4SP14/7 | 2.2 | 3 | 1½"/2" | 48 | 47 | 45 | 43 | 41 | 40 | 38 | 34 | 30 | 24 | 16 | ||
| — | 4SP14/10 | 3 | 4 | 1½"/2" | 69 | 67 | 64 | 61 | 59 | 57 | 54 | 49 | 42 | 34 | 23 | ||
| — | 4SP14/13 | 4 | 5.5 | 1½"/2" | 89 | 87 | 83 | 80 | 77 | 74 | 70 | 64 | 55 | 45 | 30 | ||
| — | 4SP14/18 | 5.5 | 7.5 | 1½"/2" | 124 | 121 | 114 | 110 | 107 | 102 | 97 | 89 | 76 | 62 | 41 | ||
| — | 4SP14/25 | 7.5 | 10 | 1½"/2" | 172 | 168 | 159 | 153 | 148 | 142 | 135 | 123 | 106 | 86 | 57 | ||
