Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:100m.
Maximum well diameter:6".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Warranty:1 year
According to our general sales conditions.

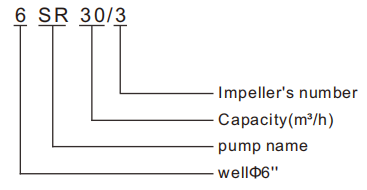

Model Description

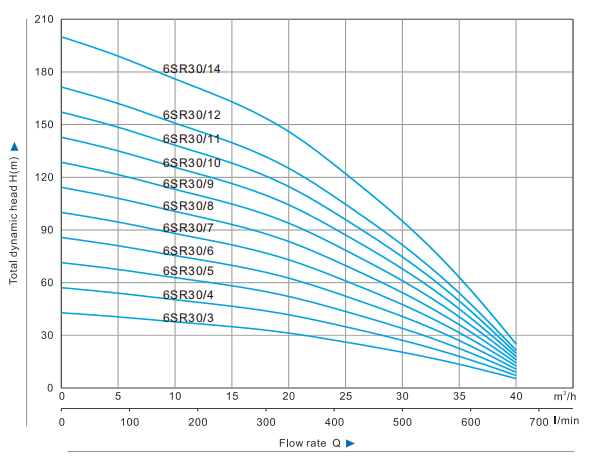

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||
| 3~ 380-415V |
KW | HP | Q | m³/h | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | |
| l/ min | 0 | 83 | 167 | 250 | 333 | 417 | 500 | 583 | 667 | |||||
| 6SR30/3 | 4 | 5.5 | 3" | H(m) | 43 | 41 | 38 | 35 | 31 | 26 | 20 | 14 | 5 | |
| 6SR30/4 | 5.5 | 7.5 | 3" | 57 | 54 | 50 | 47 | 42 | 35 | 27 | 18 | 7 | ||
| 6SR30/5 | 5.5 | 7.5 | 3" | 71 | 68 | 63 | 58 | 52 | 44 | 34 | 23 | 9 | ||
| 6SR30/6 | 7.5 | 10 | 3" | 86 | 81 | 76 | 70 | 62 | 52 | 41 | 27 | 11 | ||
| 6SR30/7 | 7.5 | 10 | 3" | 100 | 95 | 88 | 81 | 73 | 61 | 47 | 32 | 13 | ||
| 6SR30/8 | 9.2 | 12.5 | 3" | 114 | 108 | 101 | 93 | 83 | 70 | 54 | 36 | 15 | ||
| 6SR30/9 | 9.2 | 12.5 | 3" | 129 | 122 | 113 | 105 | 94 | 79 | 64 | 41 | 16 | ||
| 6SR30/10 | 11 | 15 | 3" | 143 | 135 | 126 | 116 | 101 | 87 | 68 | 45 | 18 | ||
| 6SR30/11 | 11 | 15 | 3" | 157 | 149 | 139 | 128 | 114 | 96 | 75 | 50 | 20 | ||
| 6SR30/12 | 13 | 17.5 | 3" | 172 | 162 | 151 | 140 | 125 | 105 | 81 | 54 | 22 | ||
| 6SR30/14 | 15 | 20 | 3" | 200 | 189 | 176 | 163 | 146 | 122 | 95 | 63 | 25 | ||
