Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:100m.
Maximum well diameter:6".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards

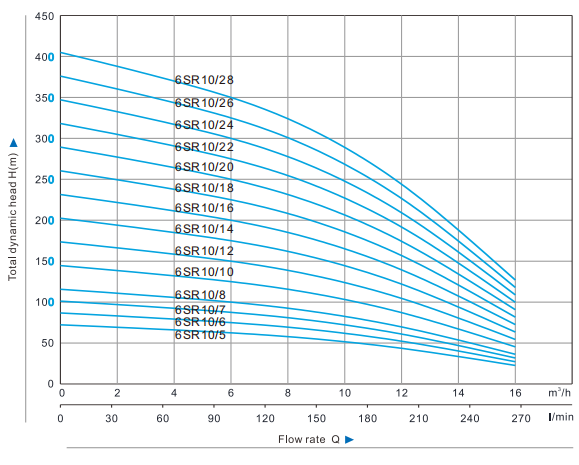

Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Warranty:1 year
According to our general sales conditions.

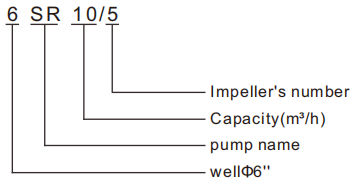

Model Description
| Model | Moto r power | DN | DELIVERY rpm:2850r/ min | |||||||||||
| 3~ 380-415V |
KW | HP | Q | m³/h | 0 | 2 | 4 | 6 | 8 | 10 | 12 | 14 | 16 | |
| l/ min | 0 | 33 | 67 | 100 | 133 | 167 | 200 | 233 | 267 | |||||
| 6SR10/5 | 3 | 4 | 3" | H(m) | 72 | 69 | 66 | 62 | 58 | 52 | 43 | 33 | 23 | |
| 6SR10/6 | 4 | 5.5 | 3" | 87 | 83 | 79 | 75 | 69 | 62 | 52 | 40 | 27 | ||
| 6SR10/7 | 4 | 5.5 | 3" | 101 | 97 | 93 | 87 | 81 | 72 | 61 | 47 | 32 | ||
| 6SR10/8 | 5.5 | 7.5 | 3" | 116 | 111 | 106 | 100 | 93 | 83 | 70 | 54 | 36 | ||
| 6SR10/10 | 5.5 | 7.5 | 3" | 145 | 138 | 132 | 125 | 116 | 103 | 87 | 67 | 45 | ||
| 6SR10/12 | 7.5 | 10 | 3" | 173 | 166 | 159 | 150 | 139 | 124 | 104 | 80 | 54 | ||
| 6SR10/14 | 7.5 | 10 | 3" | 202 | 194 | 185 | 175 | 162 | 145 | 122 | 94 | 63 | ||
| 6SR10/16 | 9.2 | 12.5 | 3" | 231 | 222 | 212 | 200 | 185 | 165 | 139 | 107 | 72 | ||
| 6SR10/18 | 9.2 | 12.5 | 3" | 260 | 249 | 238 | 225 | 208 | 186 | 157 | 121 | 81 | ||
| 6SR10/20 | 11 | 15 | 3" | 289 | 277 | 264 | 250 | 231 | 206 | 174 | 134 | 90 | ||
| 6SR10/22 | 11 | 15 | 3" | 318 | 305 | 291 | 275 | 255 | 227 | 191 | 147 | 100 | ||
| 6SR10/24 | 13 | 17.5 | 3" | 347 | 332 | 317 | 300 | 278 | 248 | 209 | 161 | 109 | ||
| 6SR10/26 | 15 | 20 | 3" | 376 | 360 | 344 | 325 | 301 | 268 | 226 | 174 | 118 | ||
| 6SR10/28 | 15 | 20 | 3" | 405 | 388 | 370 | 350 | 324 | 289 | 244 | 188 | 127 | ||
