Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:100m.
Maximum well diameter:6".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Warranty:1 year
According to our general sales conditions.

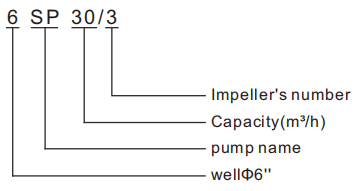

Model Description

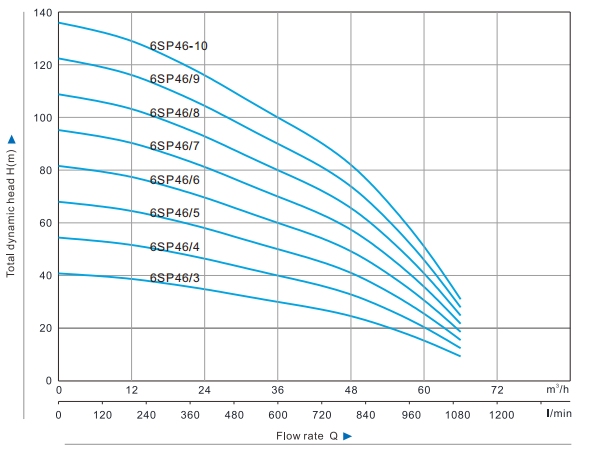

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||||
|
3~ 380-415V |
KW | HP | m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | 66 | |
| Q l/ min |
0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | 1100 | ||||
| 6SP46/3 | 4 | 5.5 | 3"/4" | H(m) | 41 | 40 | 39 | 37 | 35 | 32 | 30 | 28 | 25 | 20 | 15 | 9 |
| 6SP46/4 | 5.5 | 7.5 | 3"/4" | 54 | 53 | 52 | 49 | 46 | 43 | 40 | 37 | 33 | 27 | 20 | 12 | |
| 6SP46/5 | 7.5 | 10 | 3"/4" | 68 | 66 | 65 | 62 | 58 | 54 | 50 | 46 | 41 | 34 | 25 | 15 | |
| 6SP46/6 | 9.2 | 12.5 | 3"/4" | 82 | 80 | 77 | 74 | 69 | 65 | 60 | 55 | 49 | 41 | 30 | 18 | |
| 6SP46/7 | 11 | 15 | 3"/4" | 95 | 93 | 90 | 86 | 81 | 76 | 70 | 64 | 58 | 48 | 36 | 22 | |
| 6SP46/8 | 13 | 17.5 | 3"/4" | 109 | 106 | 103 | 99 | 93 | 87 | 80 | 74 | 66 | 55 | 41 | 25 | |
| 6SP46/9 | 15 | 20 | 3"/4" | 122 | 119 | 116 | 111 | 104 | 97 | 90 | 83 | 74 | 61 | 46 | 28 | |
| 6SP46/10 | 15 | 20 | 3"/4" | 136 | 133 | 129 | 123 | 116 | 108 | 100 | 92 | 82 | 68 | 51 | 31 | |
Keywords：Flexible pump | Rotary pump series | Magnetic pump | Screw pump | Gear pump
6SP46
