Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:100m.
Maximum well diameter:6".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Warranty:1 year
According to our general sales conditions.

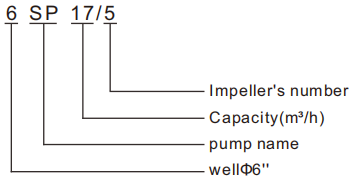

Model Description
| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||
| 3~ 380-415V |
KW | HP | Q | m³/h | 0 | 3 | 6 | 9 | 12 | 15 | 18 | 21 | 24 | |
| l/ min | 0 | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |||||
| 6SP17/5 | 3 | 4 | 3"/4" | H(m) | 54 | 54 | 53 | 51 | 48 | 43 | 37 | 30 | 20 | |
| 6SP17/6 | 4 | 5.5 | 3"/4" | 65 | 64 | 63 | 61 | 57 | 52 | 45 | 35 | 25 | ||
| 6SP17/7 | 4 | 5.5 | 3"/4" | 76 | 75 | 74 | 71 | 67 | 60 | 52 | 41 | 29 | ||
| 6SP17/9 | 5.5 | 7.5 | 3"/4" | 97 | 96 | 95 | 92 | 86 | 78 | 67 | 53 | 37 | ||
| 6SP17/11 | 7.5 | 10 | 3"/4" | 119 | 118 | 116 | 112 | 105 | 95 | 82 | 65 | 45 | ||
| 6SP17/13 | 7.5 | 10 | 3"/4" | 141 | 139 | 137 | 133 | 124 | 112 | 97 | 77 | 53 | ||
| 6SP17/15 | 9.2 | 12.5 | 3"/4" | 162 | 161 | 158 | 153 | 143 | 129 | 112 | 89 | 61 | ||
| 6SP17/17 | 11 | 15 | 3"/4" | 184 | 182 | 179 | 173 | 162 | 147 | 127 | 100 | 70 | ||
| 6SP17/19 | 11 | 15 | 3"/4" | 206 | 204 | 201 | 194 | 182 | 164 | 141 | 112 | 78 | ||
| 6SP17/21 | 13 | 17.5 | 3"/4" | 227 | 225 | 222 | 214 | 201 | 181 | 156 | 124 | 86 | ||
| 6SP17/23 | 13 | 17.5 | 3"/4" | 249 | 246 | 243 | 235 | 220 | 198 | 171 | 136 | 94 | ||
| 6SP17/26 | 15 | 20 | 3"/4" | 281 | 278 | 274 | 265 | 248 | 224 | 194 | 154 | 106 | ||
Keywords：Flexible pump | Rotary pump series | Magnetic pump | Screw pump | Gear pump
6SP17
