Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:100m.
Maximum well diameter:6".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Warranty:1 year
According to our general sales conditions.

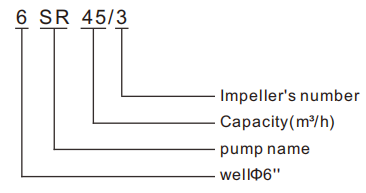

Model Description
| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||||
| 3~ 380-415V |
KW | HP | Q | m³/h | 0 | 6 | 12 | 18 | 24 | 30 | 36 | 42 | 48 | 54 | 60 | |
| L/ min | 0 | 100 | 200 | 300 | 400 | 500 | 600 | 700 | 800 | 900 | 1000 | |||||
| 6SR45/3 | 4 | 5.5 | 3" | H(m) | 37 | 36 | 35 | 33 | 32 | 30 | 27 | 24 | 20 | 16 | 12 | |
| 6SR45/4 | 5.5 | 7.5 | 3" | 50 | 48 | 46 | 44 | 42 | 39 | 36 | 32 | 27 | 22 | 16 | ||
| 6SR45/5 | 7.5 | 10 | 3" | 62 | 60 | 58 | 55 | 53 | 49 | 45 | 40 | 34 | 27 | 20 | ||
| 6SR45/6 | 9.2 | 12.5 | 3" | 74 | 72 | 70 | 67 | 63 | 59 | 54 | 48 | 41 | 33 | 24 | ||
| 6SR45/7 | 11 | 15 | 3" | 87 | 84 | 81 | 78 | 74 | 69 | 63 | 56 | 48 | 38 | 28 | ||
| 6SR45/8 | 13 | 17.5 | 3" | 99 | 96 | 93 | 89 | 84 | 79 | 72 | 64 | 54 | 44 | 32 | ||
| 6SR45/9 | 15 | 20 | 3" | 112 | 108 | 104 | 100 | 95 | 89 | 81 | 72 | 61 | 49 | 36 | ||
