Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:80m.
Maximum well diameter:3".
Motor and Pump
Rewindable motor or Full obturated screen motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
Pumps are designed by casing stressed
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

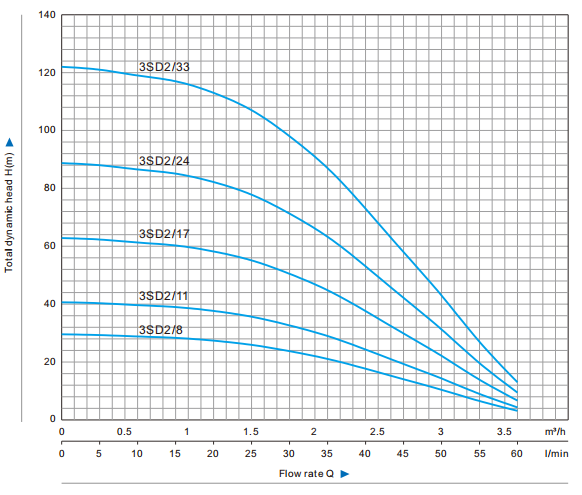

Model Description
| Model | Motor power | DN | DELIVERY rpm:2850r/ min | ||||||||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | 3.3 | 3.6 | |
| l/ min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | 55 | 60 | ||||||
| 3SDM2/8 | 0.25 | 0.33 | 1"1¼" | 1"1¼" | H(m) | 30 | 29 | 29 | 28 | 27 | 26 | 24 | 21 | 18 | 14 | 10 | 7 | 3 | |
| 3SDM2/11 | 0.37 | 0.5 | 1"1¼" | 1"1¼" | 41 | 40 | 40 | 39 | 37 | 36 | 33 | 29 | 25 | 19 | 14 | 10 | 4 | ||
| 3SDM2/17 | 0.55 | 0.75 | 1"1¼" | 1"1¼" | 64 | 62 | 62 | 60 | 57 | 55 | 51 | 45 | 38 | 30 | 21 | 15 | 6 | ||
| 3SDM2/24 | 0.75 | 1.0 | 1"1¼" | 1"1¼" | 90 | 87 | 87 | 84 | 87 | 78 | 75 | 63 | 54 | 42 | 30 | 21 | 9 | ||
| 3SDM2/33 | 1.1 | 1.5 | 1"1¼" | 1"1¼" | 124 | 120 | 120 | 116 | 111 | 107 | 99 | 87 | 74 | 58 | 41 | 29 | 12 | ||
