Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:90m.
Maximum well diameter:4".
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Equip with start control box or digital auto-control box
NEMA dimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

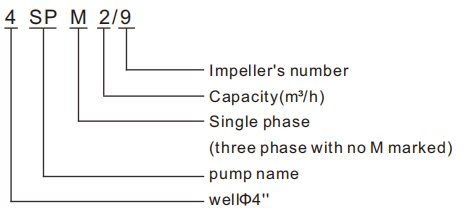

Model Description

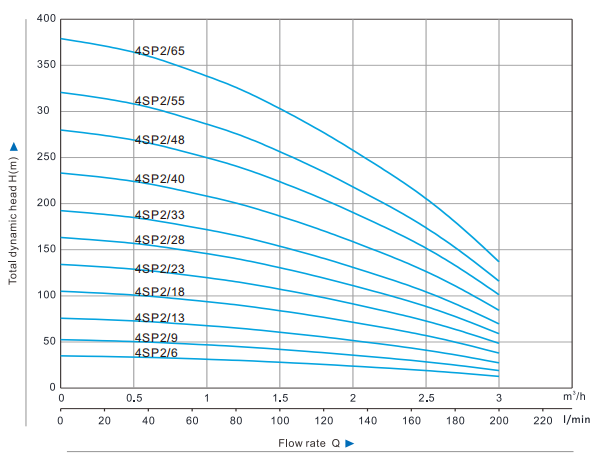

| Model | Motor power | DN | DELIVERY rpm:2850r/ min | ||||||||||||||
| 1~ 220-240V |
3~ 380-415V |
KW | HP | Q | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 | 3.0 | |
| l/ min | 0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | 50 | ||||||
| 4SPM2/9 | 4SP2/9 | 0.37 | 0.5 | 1¼"1½" | H(m) | 52 | 51 | 50 | 48 | 45 | 42 | 38 | 34 | 30 | 25 | 19 | |
| 4SPM2/13 | 4SP2/13 | 0.55 | 0.75 | 1¼"1½" | 76 | 74 | 72 | 69 | 65 | 61 | 55 | 50 | 43 | 36 | 27 | ||
| 4SPM2/18 | 4SP2/18 | 0.75 | 1 | 1¼"1½" | 105 | 103 | 100 | 95 | 90 | 84 | 77 | 69 | 60 | 50 | 38 | ||
| 4SPM2/23 | 4SP2/23 | 1.1 | 1.5 | 1½"1½" | 134 | 131 | 127 | 122 | 115 | 107 | 98 | 88 | 77 | 64 | 48 | ||
| 4SPM2/28 | 4SP2/28 | 1.5 | 2 | 1%"1½" | 163 | 160 | 155 | 148 | 140 | 131 | 119 | 107 | 93 | 78 | 59 | ||
| 4SPM2/33 | 4SP2/33 | 1.5 | 2 | 1½"1½" | 192 | 188 | 183 | 175 | 166 | 154 | 141 | 126 | 110 | 91 | 70 | ||
| 4SPM2/40 | 4SP2/40 | 2.2 | 3 | 1¼"1½" | 233 | 228 | 222 | 212 | 201 | 186 | 170 | 153 | 134 | 111 | 84 | ||
| 4SPM2/48 | 4SP2/48 | 2.2 | 3 | 1¼"1½" | 280 | 274 | 266 | 254 | 241 | 224 | 205 | 183 | 160 | 133 | 101 | ||
| — | 4SP2/55 | 3 | 4 | 1¼"1½" | 321 | 314 | 305 | 291 | 276 | 256 | 234 | 210 | 184 | 152 | 116 | ||
| — | 4SP2/65 | 3 | 4 | 1¼"1½" | 379 | 371 | 360 | 344 | 326 | 303 | 277 | 248 | 217 | 180 | 137 | ||
