Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:90m.
Maximum well diameter:4".
Motor and Pump
Rewindable motor
Single-phase:220V-240V/50Hz
Three-phase:380V-415V/50Hz
Equip with start control box or digital auto-control box
NEMA dimension standards

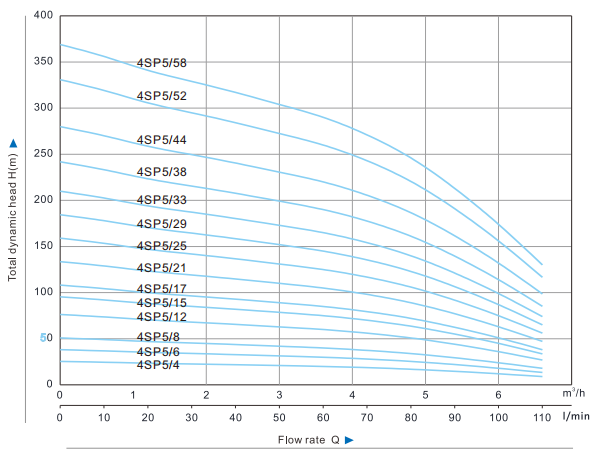

Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

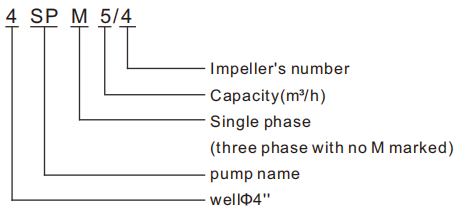

Model Description
| Model | Motor power | DN | DELIVERY rpm:2850r/ min | |||||||||||||||
| 1~220-240V | 3~380-415V | KW | HP | Q | m³/h | 0 | 0.6 | 1.2 | 1.8 | 2.4 | 3.0 | 3.6 | 4.2 | 4.8 | 5.4 | 6.0 | 6.6 | |
| l/ min | 0 | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 | 90 | 100 | 110 | ||||||
| 4SPM5/4 | 4SP5/4 | 0.37 | 0.5 | 1%"1½" | H(m) | 25 | 25 | 24 | 23 | 22 | 21 | 20 | 19 | 17 | 15 | 12 | 9 | |
| 4SPM5/6 | 4SP5/6 | 0.55 | 0.75 | 1%"1½" | 38 | 37 | 35 | 34 | 33 | 31 | 30 | 28 | 25 | 22 | 18 | 13 | ||
| 4SPM5/8 | 4SP5/8 | 0.75 | 1 | 1%"1½" | 51 | 49 | 47 | 45 | 44 | 42 | 40 | 37 | 34 | 29 | 24 | 18 | ||
| 4SPM5/12 | 4SP5/12 | 1.1 | 1.5 | 1%"1½" | 76 | 74 | 71 | 68 | 66 | 63 | 60 | 56 | 51 | 44 | 36 | 27 | ||
| 4SPM5/15 | 4SP5/15 | 1.5 | 2 | 1%"1½" | 96 | 92 | 88 | 85 | 82 | 79 | 75 | 70 | 64 | 55 | 45 | 34 | ||
| 4SPM5/17 | 4SP5/17 | 1.5 | 2 | 1%"1½" | 108 | 104 | 100 | 96 | 93 | 89 | 85 | 79 | 72 | 62 | 51 | 38 | ||
| 4SPM5/21 | 4SP5/21 | 2.2 | 3 | 1%"1½" | 134 | 129 | 124 | 119 | 115 | 110 | 105 | 98 | 89 | 77 | 63 | 47 | ||
| 4SPM5/25 | 4SP5/25 | 2.2 | 3 | 1%"1½" | 159 | 153 | 147 | 142 | 137 | 131 | 125 | 117 | 106 | 92 | 75 | 56 | ||
| — | 4SP5/29 | 3 | 4 | 1%"1½" | 185 | 178 | 171 | 164 | 159 | 152 | 145 | 135 | 123 | 106 | 87 | 65 | ||
| — | 4SP5/33 | 3 | 4 | 1%"1½" | 210 | 202 | 194 | 187 | 180 | 173 | 165 | 154 | 140 | 121 | 99 | 74 | ||
| — | 4SP5/38 | 4 | 5.5 | 1%"1½" | 242 | 233 | 224 | 215 | 208 | 200 | 190 | 177 | 162 | 139 | 114 | 86 | ||
| — | 4SP5/44 | 4 | 5.5 | 1%"1½" | 280 | 270 | 259 | 249 | 241 | 231 | 220 | 205 | 187 | 161 | 132 | 99 | ||
| — — |
4SP5/52 4SP5/58 |
5.5 5.5 |
7.5 7.5 |
1%"1½" 1%"1½" |
331 | 319 | 306 | 295 | 284 | 273 | 260 | 243 | 221 | 191 | 156 | 117 | ||
| 369 | 356 | 341 | 329 | 317 | 304 | 290 | 271 | 246 | 213 | 174 | 130 | |||||||
