Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:50m.
Maximum well diameter:4".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards
Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

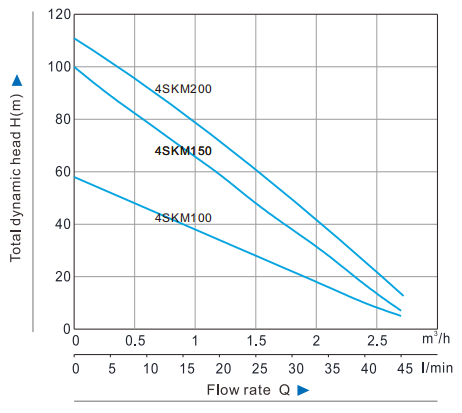

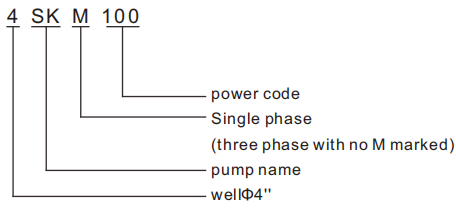

Model Description
| Model | Motor power | DELIVERY rpm:2850r/ min | ||||||||||||
| 220-240V | KW | HP | Q | m³/h | 0 | 0.3 | 0.6 | 0.9 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 2.7 |
|
L/ min |
0 | 5 | 10 | 15 | 20 | 25 | 30 | 35 | 40 | 45 | ||||
| 4SKM100 | 0.75 | 1 | H(m) | 58 | 52 | 46 | 40 | 34 | 28 | 22 | 16 | 10 | 5 | |
| 4SKM150 | 1.1 | 1.5 | 100 | 89 | 79 | 69 | 59 | 48 | 38 | 28 | 17 | 7 | ||
| 4SKM200 | 1.5 | 2 | 110 | 99 | 88 | 78 | 67 | 56 | 45 | 34 | 23 | 12 | ||
Keywords：Flexible pump | Rotary pump series | Magnetic pump | Screw pump | Gear pump
4SK
