Applications
For water supply from wells or reservoirs.
For domestic use,for civil and industrial applications.
For garden use and irigation.
Operating conditions
Maximum fluid temperature up to+35℃.
Maximum sand content:0.25%.
Maximum immersion:50m.
Maximum well diameter:2"3"4".
Motor and Pump
Rewindable motor
Three-phase:380V-415V/50Hz
Single-phase:220V-240V/50Hz
Equip with start control box or digital auto-control box
NEMAdimension standards

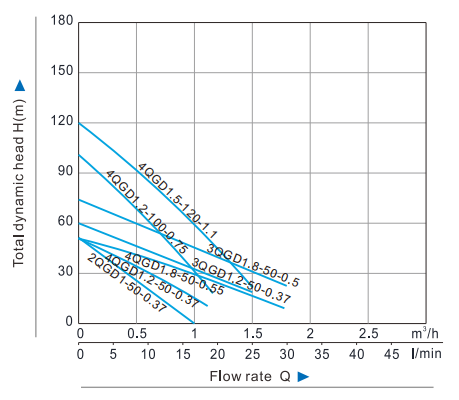

Curve tolerance according to ISO 9906
Options on request
Special mechanical seal
Other voltages or frequency 60Hz
Single phase motor with built-in capacitor
Warranty:1 year
According to our general sales conditions.

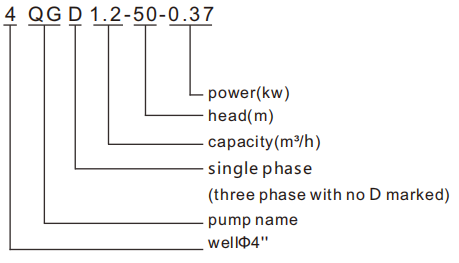

Model Description
| Model | Motor power | DN | DELIVERY rpm:2850r/ min | ||
| 220-240v | KW | HP | CAPACITY (m³/h) |
HEAD (m) |
|
| 2QGD1-50-0.37 | 0.37 | 0.5 | 0.4" | 1 | 50 |
| 3QGD1.2-50-0.37 | 0.37 | 0.5 | 1" | 1.2 | 50 |
| 3QGD1.8-50-0.5 | 0.5 | 0.7 | 1" | 1.8 | 50 |
| 3.5QGD1.8-50-0.5 | 0.5 | 0.7 | 1" | 1.8 | 50 |
| 4QGD1.2-50-0.37 | 0.37 | 0.5 | 1" | 1.2 | 50 |
| 4QGD1.8-50-.0.5 | 0.5 | 0.7 | 1" | 1.8 | 50 |
| 4QGD1.2-100-0.75 | 0.75 | 1 | 1" | 1.2 | 100 |
| 4QGD1.5-120-1.1 | 1.1 | 1.5 | 1" | 1.5 | 120 |
